Apache Spark | Run first spark program

-
In this post we are going to run sample spark program. If you want to setup spark locally go to this post. In the last post we created slave node with 2 cores and 2g memory. This worker node will be used by master to run your spark jobs.

Spark installations provides some sample programs to run on cluster. This can be found at below location.
rohan@rohan:/opt/spark/spark-2.3.1-bin-hadoop2.7/examples/src/main/java/org/apache/spark/examples$ ll
total 64
drwxrwxr-x 6 rohan rohan 4096 Jun 1 22:49 ./
drwxrwxr-x 3 rohan rohan 4096 Jun 1 22:49 ../
-rw-rw-r-- 1 rohan rohan 4506 Jun 1 22:49 JavaHdfsLR.java
-rw-rw-r-- 1 rohan rohan 4683 Jun 1 22:49 JavaLogQuery.java
-rw-rw-r-- 1 rohan rohan 4303 Jun 1 22:49 JavaPageRank.java
-rw-rw-r-- 1 rohan rohan 1943 Jun 1 22:49 JavaSparkPi.java
-rw-rw-r-- 1 rohan rohan 2721 Jun 1 22:49 JavaStatusTrackerDemo.java
-rw-rw-r-- 1 rohan rohan 3477 Jun 1 22:49 JavaTC.java
-rw-rw-r-- 1 rohan rohan 1968 Jun 1 22:49 JavaWordCount.java
drwxrwxr-x 2 rohan rohan 4096 Jun 1 22:49 ml/
drwxrwxr-x 2 rohan rohan 4096 Jun 1 22:49 mllib/
drwxrwxr-x 4 rohan rohan 4096 Jun 1 22:49 sql/
drwxrwxr-x 2 rohan rohan 4096 Jun 1 22:49 streaming/
view raw SparkExample.sh hosted with ❤ by GitHub
We will be running JavaWordCount program locally in spark cluster.


Spark programs can be pushed to cluster using  ./bin/spark-submit script. More info on official website.

Place sample word.file under any dir(/opt/spark/spark-poc/words.txt for this example). Now run below command.
rohan@rohan:/opt/spark/spark-2.3.1-bin-hadoop2.7/bin$./spark-submit --class "org.apache.spark.examples.JavaWordCount" --master spark://rohan-Latitude-E5470:7077 /opt/spark/spark-2.3.1-bin-hadoop2.7/examples/jars/spark-examples_2.11-2.3.1.jar /opt/spark/spark-poc/words.txt
view raw SparkExecuteCmd.sh hosted with ❤ by GitHub

As you can see, spark-submit takes below arguments.

--class [main-class of spark program]
--master [master node url]
[app-jar]
[app command-line arguments]

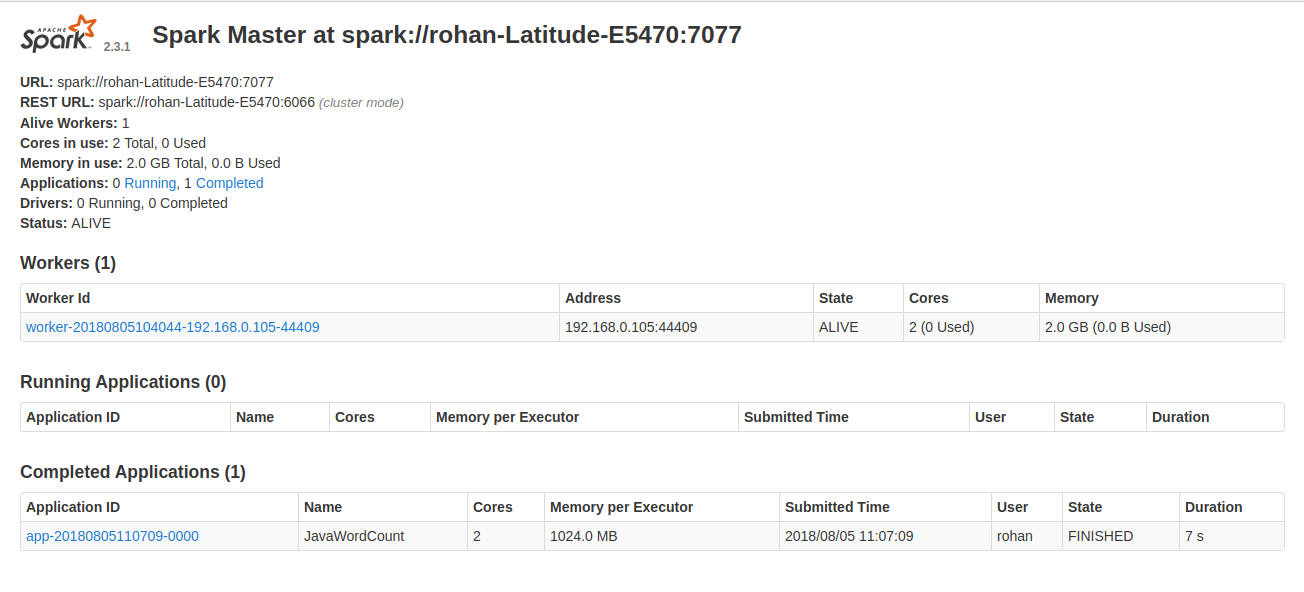

Check Spark master UI to see status of spark program.
